2 Part Epoxy Filling Machine 2K Two-Component Glue Dosing Equipment Machinery and Industrial Product
2025-07-17 14:45:23
AB Glue Mixing Principle/Function
AB glue potting machine is mainly used for double liquid AB glue. Its main function is to mix the two kinds of AB glue well, mix them evenly,squeeze them out and automatically fill them into each product.In short, it is composed of material barrel, metering pump,metering motor, conveying pipe, double liquid glue valve,dynamic mixing motor,mixing pipe and three-axis manipulator platform.The glue A and B are completely separated in the whole process from the glue entering the material barrel, metering pump, material conveying pipe and double liquid glue valve, so the glue will not solidify in the equipment. Adjust the proportion of glue by adjusting the speed of the motor and measuring the weight of AB glue respectively. The glue is quantitatively output to the double liquid glue valve. Through the dynamic mixing pipe, the high-speed motor drives the mixing core to rotate, so that the glue can be fully and evenly mixed and quantitatively extruded into the product. Double liquid glue moistening has the function of sucking back and preventing leakage. When the glue potting operation of a single product is completed, it can quickly break the glue without wire drawing and dripping. For different glues and different product requirements, the material bucket mixing function is configured, so that the glue will not precipitate and layer when stored in the material bucket.
The material barrel has the function of defoaming to remove the bubbles contained in the glue in the barrel.Heating constant temperature function, barrel heating, metering pump heating and conveying pipe heating to ensure consistent fluidity of glue and avoid changing the density of glue due to viscosity change of glue.

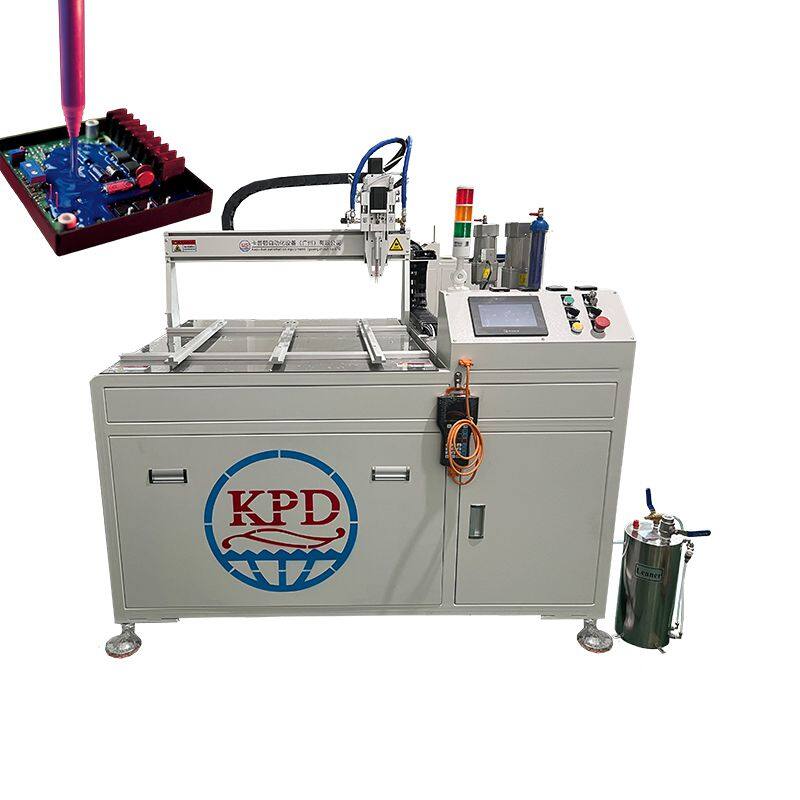

The glue potting system cooperates with the three-axis manipulator to complete the automatic glue potting operation of the product. The manual only needs to arrange the products to the equipment glue potting platform in turn, set the glue potting position and quantity, and press start. The glue potting program can store 1000 groups, which can fully meet the glue potting of different kinds of products. The touch screen man-machine interface and handheld programmer are used to set the glue pottingprogram. The operation is simple and convenient,easy to learn and understand. It does not need to be equipped with professional operators, which is more worry-saving and labor-saving. There is no need to worry about the problem that the machine is not taken over due to the resignation of personnel.
1. This automatic glue potting machine uses touch screen display operation, full Chinese display interface, easy to learn and easy to understand, workers training is simple, save training time and training costs;
2. Program editing is simple, can store multiple trajectory graphics at a time, only need to carry out a simple selection operation, can quickly adapt to different artifacts;
3. The rubber outlet adopts double liquid/static dynamic rubber valve, and the mixing pipe is connected to the bottom, so as to realize the uniform mixing of AB glue, and prevent the phenomenon such as dry filling of glue;
4. Precise control of glue quantity meets the requirements of high reliability under the condition of automatic production. It has a unique control system, which is not affected by pressure and other factors, and avoids the phenomenon of uneven glue, glue drop, wire drawing and burr.
5. The automatic glue potting machine is easy to adjust, can adapt to the requirements of different heights of the work-piece in a certain range, and can ensure that when changing the needle mixing tube, do not need to re-correct the trajectory;
6. Strong versatility, in order to meet the power supply glue, can also be used for solar junction box, instrument, sensor, transformer, generator, relay, industrial capacitor, ballast and other double liquid glue requirements.
2. Program editing is simple, can store multiple trajectory graphics at a time, only need to carry out a simple selection operation, can quickly adapt to different artifacts;
3. The rubber outlet adopts double liquid/static dynamic rubber valve, and the mixing pipe is connected to the bottom, so as to realize the uniform mixing of AB glue, and prevent the phenomenon such as dry filling of glue;
4. Precise control of glue quantity meets the requirements of high reliability under the condition of automatic production. It has a unique control system, which is not affected by pressure and other factors, and avoids the phenomenon of uneven glue, glue drop, wire drawing and burr.
5. The automatic glue potting machine is easy to adjust, can adapt to the requirements of different heights of the work-piece in a certain range, and can ensure that when changing the needle mixing tube, do not need to re-correct the trajectory;
6. Strong versatility, in order to meet the power supply glue, can also be used for solar junction box, instrument, sensor, transformer, generator, relay, industrial capacitor, ballast and other double liquid glue requirements.
This glue potting machine has wide applications Semiconductor Packaging,PCB Electronic parts fixing and protection,New energy products dispensing,SMT industry dispensing, coating ,LCD glass organic board encapsulation adhesion,Mobile telephone board coating or key dispensing,Speaker dispensing,Battery box dispensing sealing,Lighting,products sealing,Auto parts coating,Hardware parts coating then,cloth anti-skid coating,Quantitative gas,liquid filling coating,Chip bonding etc.
Tags: glue potting machine, 2k mixing and dosing machine, epoxy encapsulation machine
